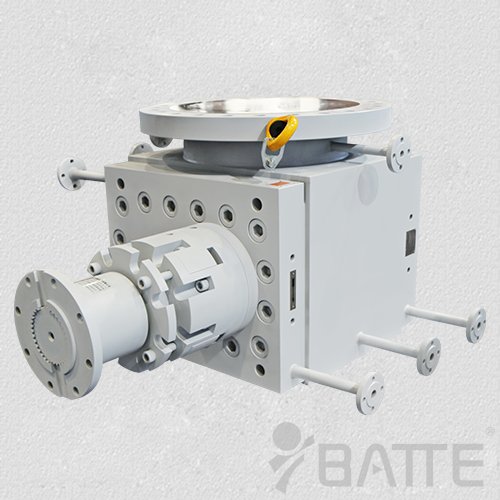

ZB-F Gear dosing pump for reactor

  • For Price: US $ 1 - 2 |Get Lateset Price
  • Port: Main Ports of China
  • Min. Order: 1 Set/Sets
  • Supply Ability: 100 Set/Sets per Month
  • Payment Terms: L/C,D/P,T/T,Western Union,MoneyGram

We are here to help.Easy ways to get the answers you need.

Gear dosing pump for reactor is used for extrusion reaction. This type of reactor discharge pumps are mainly used in conjunction with extruders or kneaders. It reduces the natural pulsation and irregular conveyance, particularly in single-screw extruders, added to which, the build up of pressure in the gear pump is more efficient in comparison to the extruder.

Technical Parameter of reactor discharge pumps:
◆Material for Melt Pump Body: stainless steel, carbon steel, hatelloy, monel metal
◆Material for Gear: M2 Steel (Optional), tool steel, nitrided steel, special materials or coating
◆Gear Tooth Type: straight gear, helical gear, herringbone gear
◆Material for Sliding Bearing: Tool steel, titanium tantalum alloy, silver nickel, special materials or abrasion-resistant coating
◆Shaft Sealing: Mechanical sealing, packing and spiral packing, combined
◆Heating System: Conduction oil heating or biphenyl gas heating
◆Model/Flow Range: 0.5CC - 12000CC, 0.5cm3/rev - 12000cm3/rev

Operating Parameter of gear dosing pump for reactor:
◆ Theory: Positive Displacement Gear Pump
◆ Structure: Gear Pumps
◆ Usage: Plastic, Rubber Pump and Fiber
◆ Power: Electric or Oil
◆ Fuel: No Need
◆ Pressure: High Pressure
◆ Volume Range: 0.5CC - 12000CC
◆ Viscosity: ≤40000 Pa.s
◆ Working Temperature: ≤400°C(750°F)
◆Cleaning Temperature: ≤450°C(850°F)
◆ Inlet Pressure: Vacuum--1.5MPa
◆Outlet Pressure: vacuum – 1.5MPa
◆Differential Pressure: ≤25MPa
◆ Outlet Pressure: 40Mpa

Pump Model
Pump Volume (CC)
Driven Power (kw)
Heating Power (kw)
Working Temperature
Working Pressure
ZB-0.6
0.6
0.37
0.5







≤400℃(750°F)




Outlet Pressure:  ≤ 40Mpa(6,000psi)

Outlet Differential Pressure: ≤ 275bar

ZB-1.2
1.2
0.75
0.5
ZB-2
2
0.75
1
ZB-5
5
1.1
2
ZB-10
10
1.5
2
ZB-20
20
2.2
2
ZB-31.5
32
3
2
ZB-50
50
4
3
ZB-100
100
5.5
4
ZB-150
150
7.5
5
ZB-90/90
200
11
6
ZB-100/100
250
15
8
ZB-100/100
315
18.5
8
ZB-115/115
500
22
12
ZB-130/130
800
30
15
ZB-160/160
1200
37
20
ZB-180/160
2500
45
24
ZB-180/180
3200
55
24
ZB-224/224
6000
75
30

Gear Dosing Pump For Reactor Features:

1. The gear pump tubes can be easily and conveniently changed
2. Melt pumps work under customers’ demand
3. Low noise and high precision
4. Simple structures and free maintenance
5. Adjustable rollers, can be balanced between flow rate and impulse

Batte Melt Pump Zhengzhou Co., Ltd is one of the biggest manufacturer for reactor discharge pumps in China.Being a professional supplier for gear dosing type chemical pump products, we have been accumulating adequate experience on the application-specific technique. In addition to providing services and spare parts for our own melt pumps, we also provide comprehensive service packages for gear dosing pump for reactor produced by other manufacturers.


Relative Articles:
Gear pump for extrusion
Polymer gear pump
Spinning Metering Pump
Melt Metering Pump

Place of Origin: Henan, China (Mainland)

Brand Name: BATTE


Model Number: ZB-F

Theory: Positive Displacement Gear Pump

Structure: Gear Pump

Usage: reaction kettle

Power: Electric or Oil

Fuel: No Need

Pressure: High Pressure

Application: transportation, pressurization or the metering of polymer

Viscosity: Up to 40000Pas

Gear Tooth: Straight (Optional),Helical gear pump(Optional),Herringbone gear pump(Optional)

Sealing Method: Mechanical Sealing (Optional)

Heating Method: Stainless Steel Heating Rod

Packaging Details: Items are packed in wooden cases.

Delivery Detail: 5-6 Weeks
