Small specification high-pressure reactor melt discharge pump

Introduction to reactor melt discharge pump

The small-sized high-pressure reactor melt discharge pump is suitable for the polymerization reaction and high-pressure discharge of high-temperature and high viscosity materials under high vacuum conditions.

reactor melt discharge pump

Structure of small-sized high-pressure Melt gear pump for reaction kettle

Rotor type: helical or straight cylindrical gear

Heating method: electric heating/thermal oil heating

Sealing structure: melt dynamic seal+packing seal, mechanical seal, cooled melt dynamic seal, high-temperature resistant packing seal.

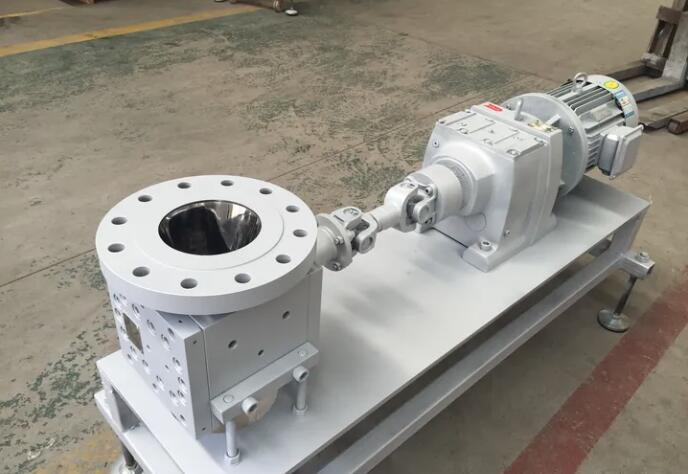

Melt gear pump for reaction kettle

Technical parameters of 0.5cc-12000cc stainless steel gear melt pump

1. Transmission medium viscosity: 0.3~400000cP

2. Suction pressure: Vacuum (-0.05~-0.09MPa)~4MPa

3. Output pressure: 0-35MPa

4. Pressure difference: ≤ 25MPa

5. Operating temperature: ≤ 350 ℃

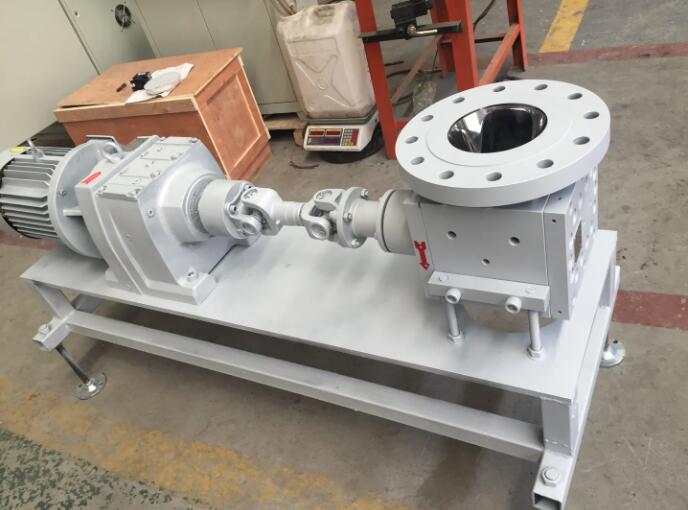

china melt pump for reactor kettle
