Melt Pump Design

A melt pump design with the meshing of gears to pump fluid by displacement. Some gear pumps are designed to function as either a motor or a pump. Melt pump performance and efficiencies will vary according to the extrusion of the resin trial runs in conjunction with the low shear barrier screw design.

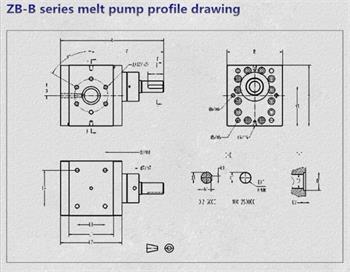

Melt Pump Design


Melt Pump Design Features:

1.The melt pump is a more effective device for raising pressure than is an extruder screw.
2. The head pressure on the screw can be reduced, lowering the melt temperature and increasing the screw’s output.
3.The melt pump is also a mixing device and thereby improves melt quality.
4.Reduces shear internal to the pump, lowering the temperature and increasing the production rate per power required.

Design and fabrication of the melt pump. The design considered relevant theories and principles which affect the performance of a pump.That's the melt pumps design, and its main purpose is to precisely control output to the die.
